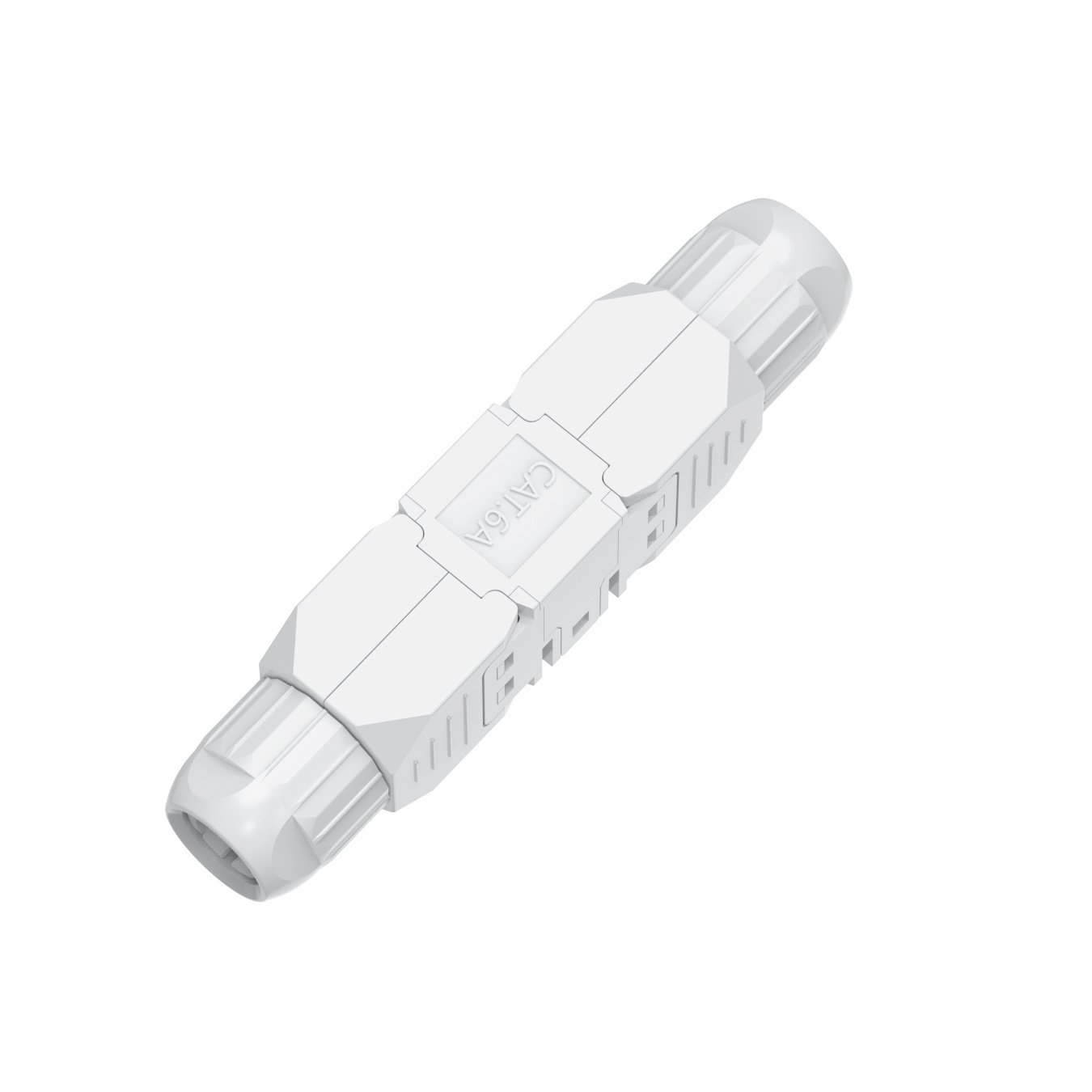

product advantages

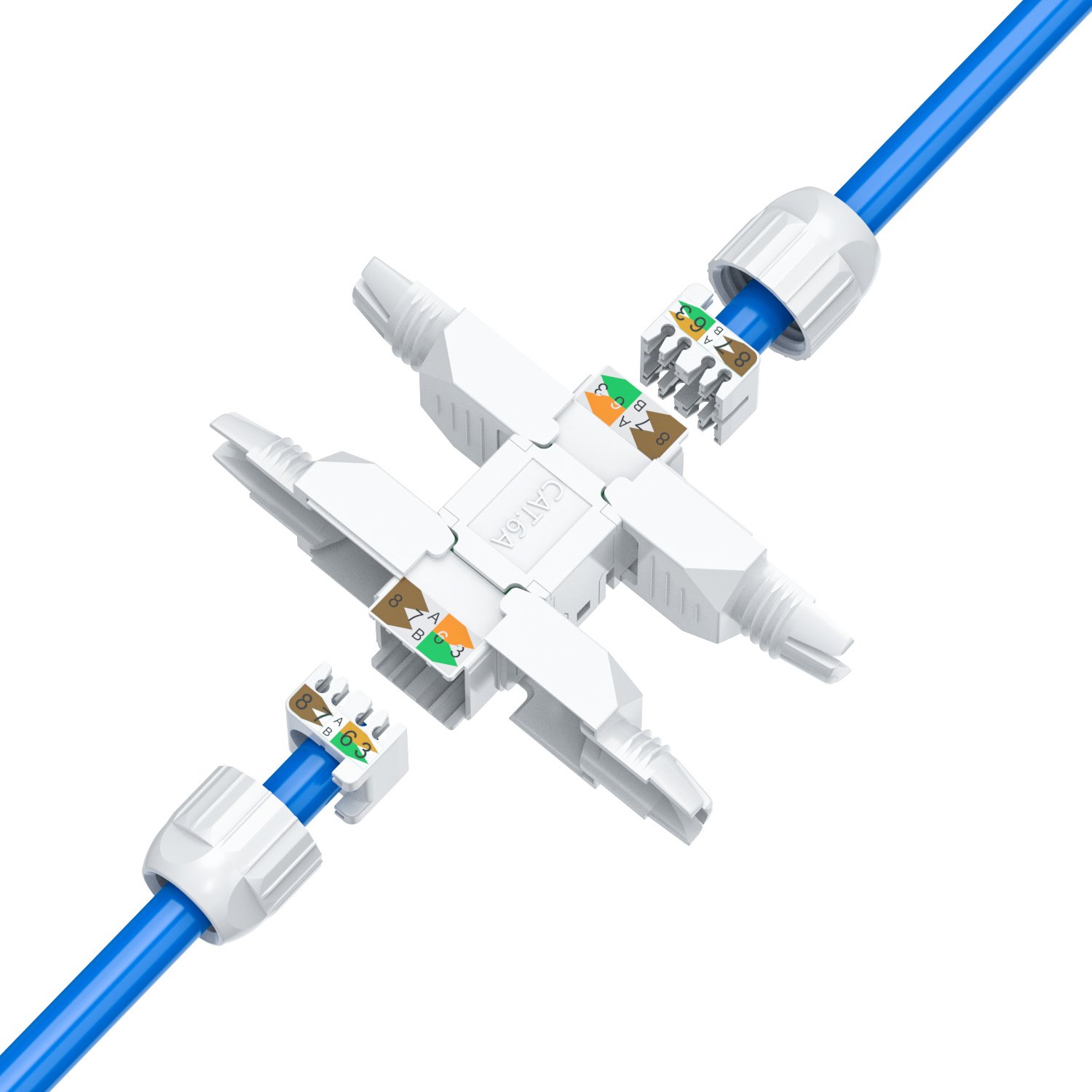

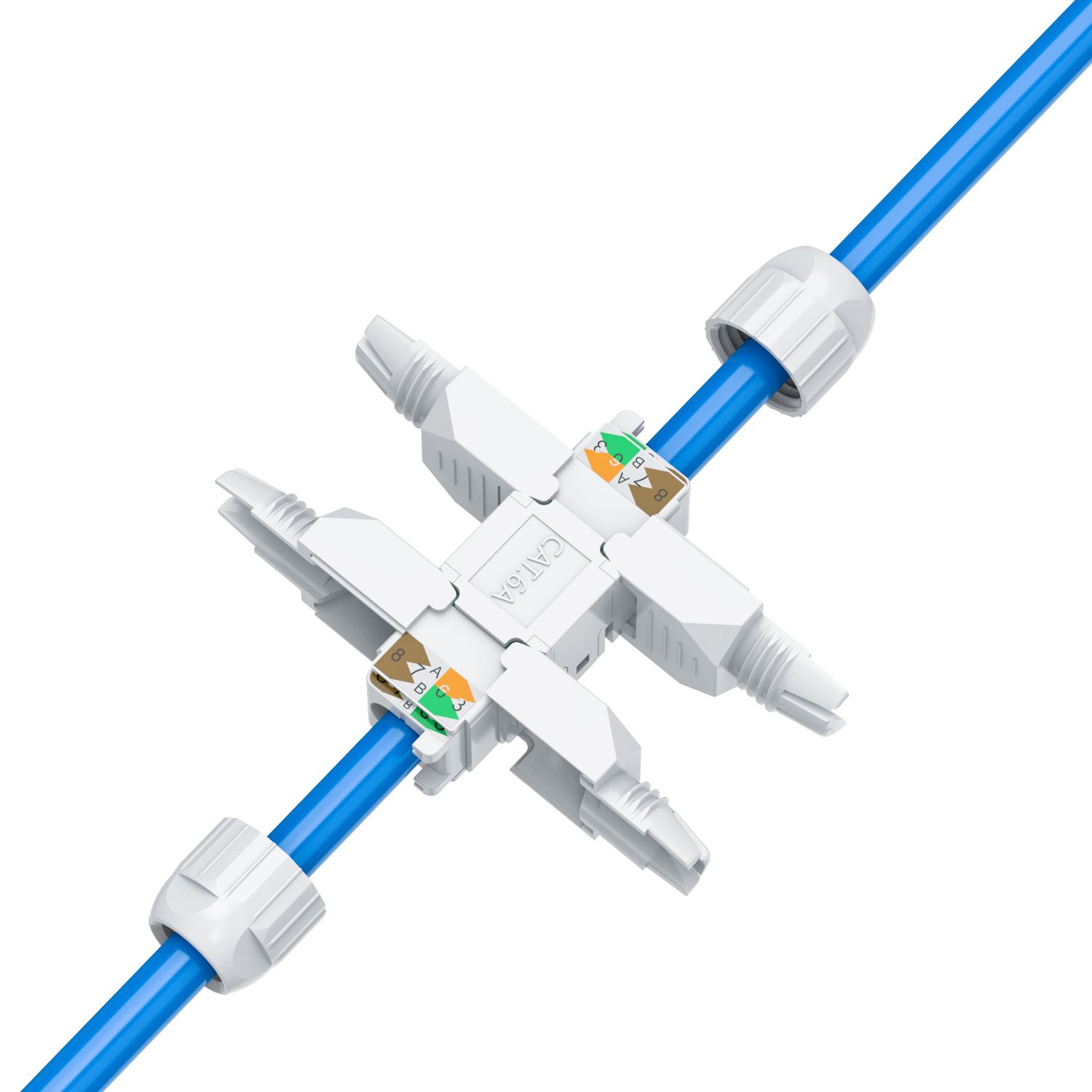

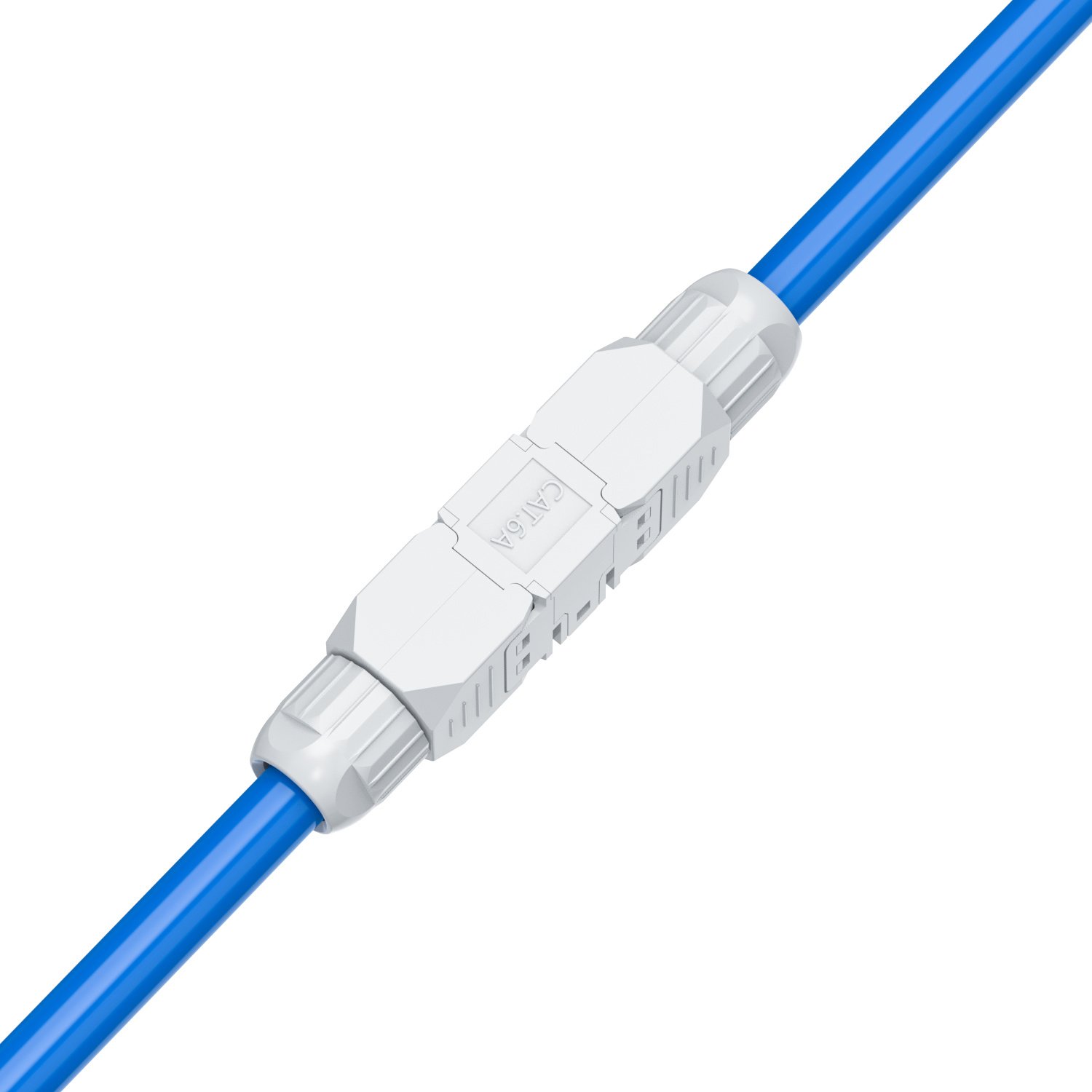

1.Easy and quick wiring, simple operation without requiring crimping tools or punch-down tools.
2.The termination blade adopts a cross-offset design, effectively enhancing anti-interference performance in signal transmission.

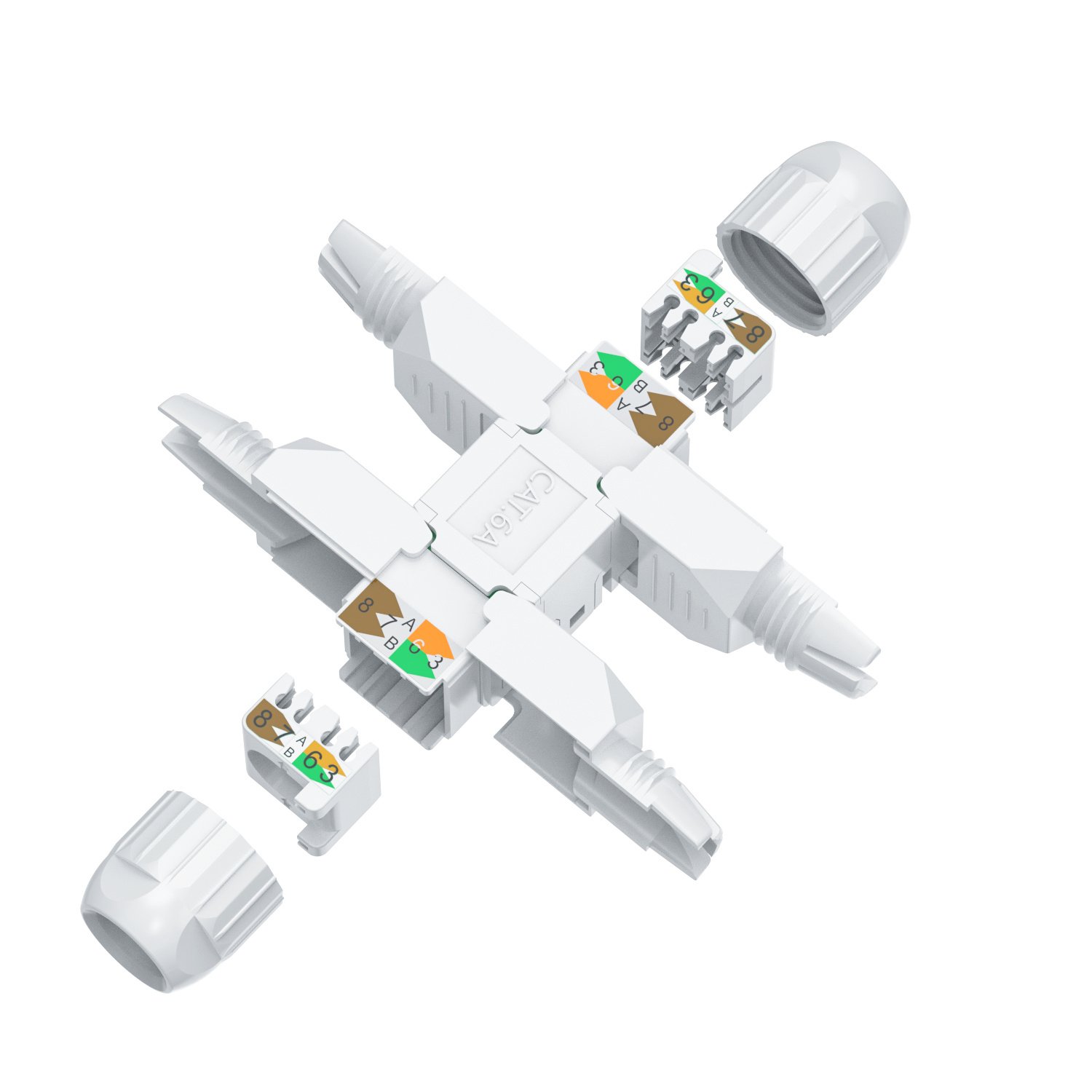

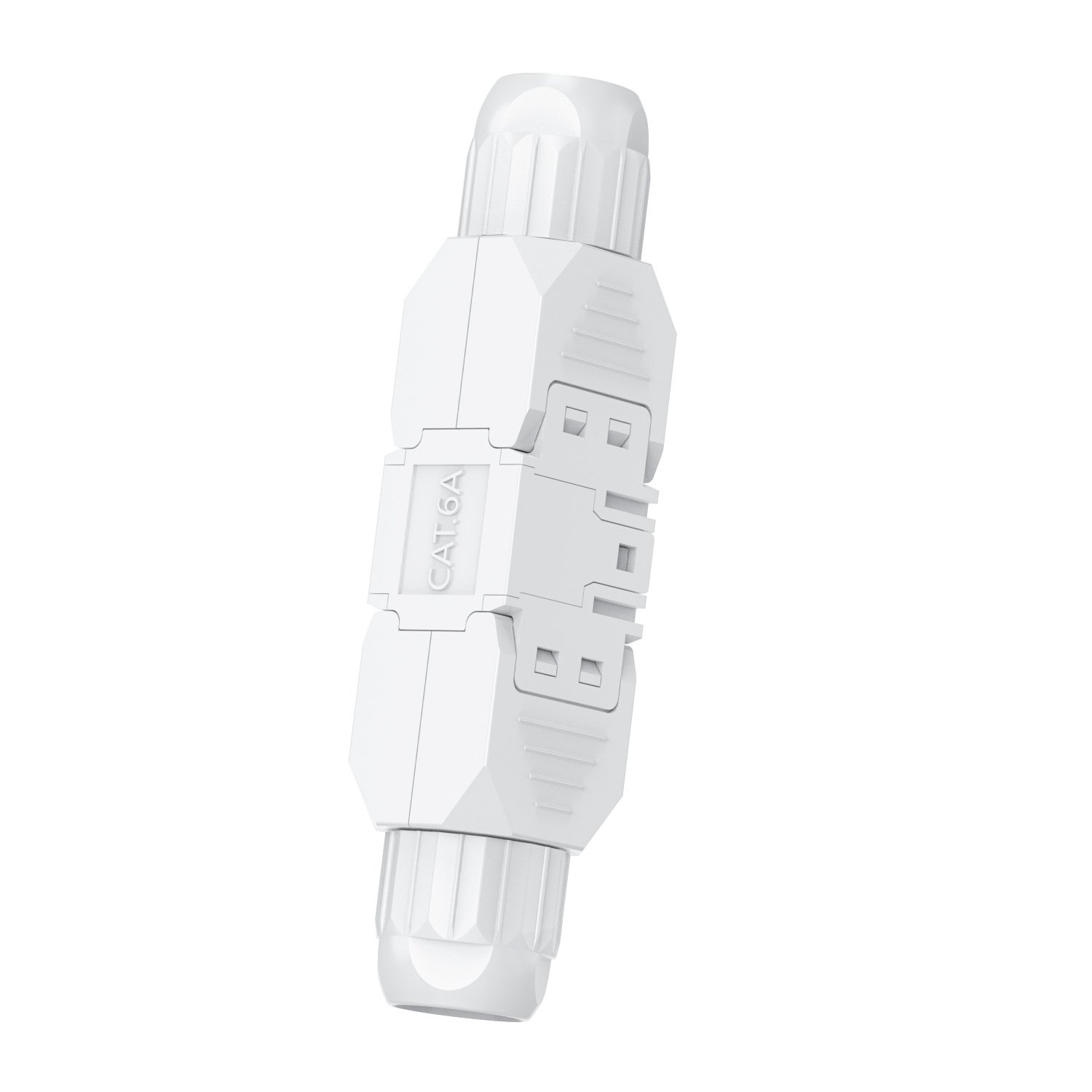

3.The wire clip is equipped with a triple anti-misinsertion structure and wire position marking for distinction, ensuring the correct installation of cables.
4.Protected by proprietary invention patents, utility model patents, and design patents, guaranteeing the product’s uniqueness and differentiation.
Shielding Type | Unshielded |

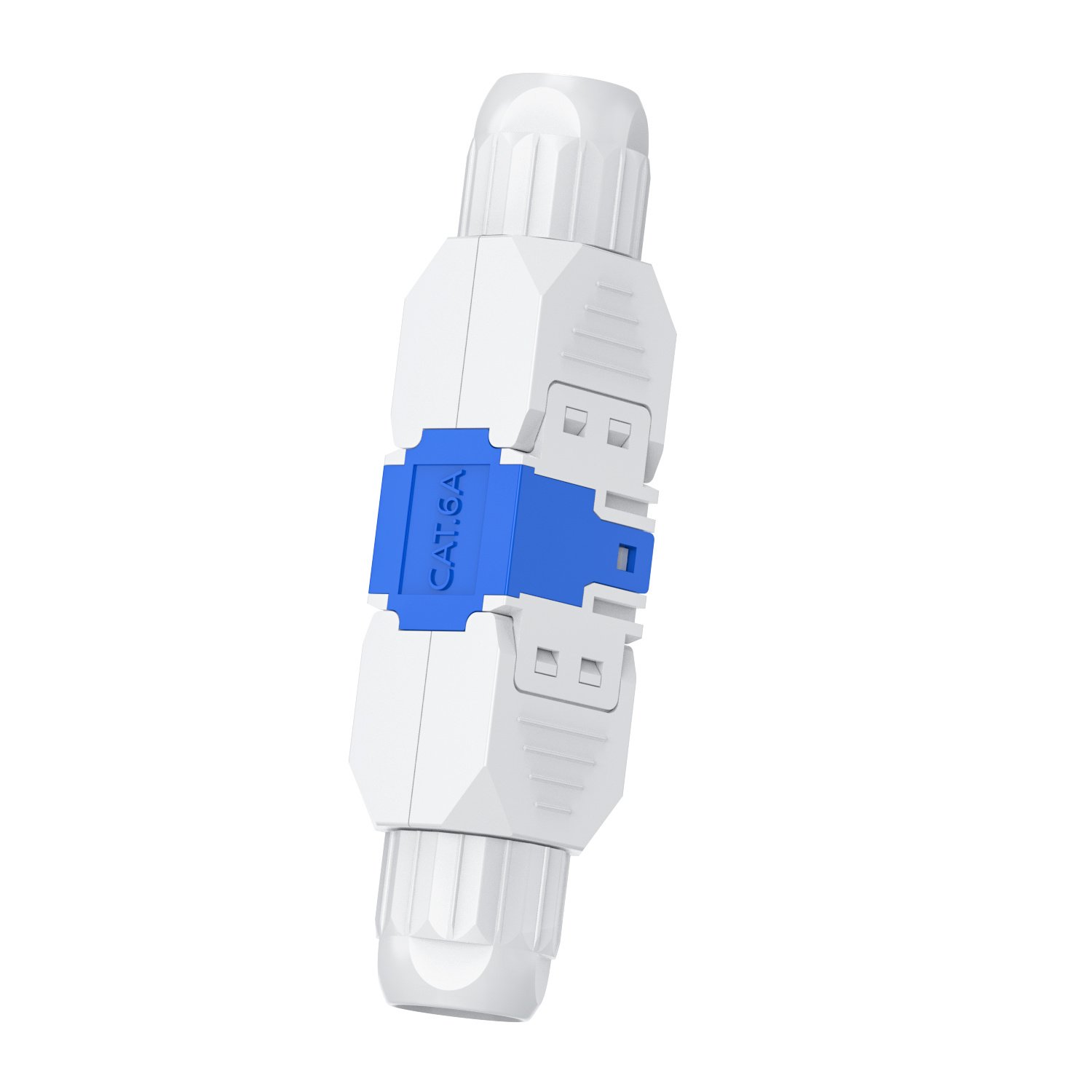

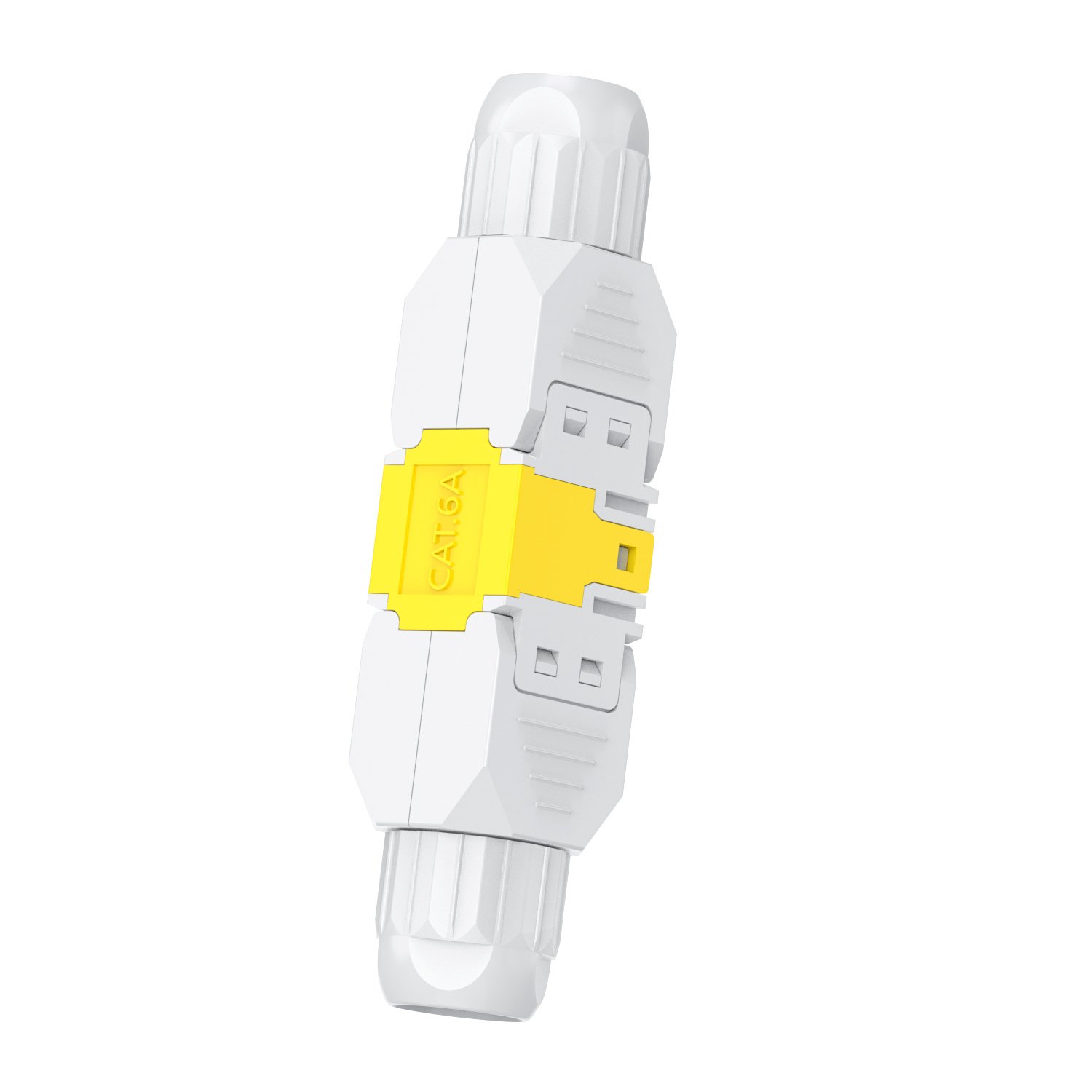

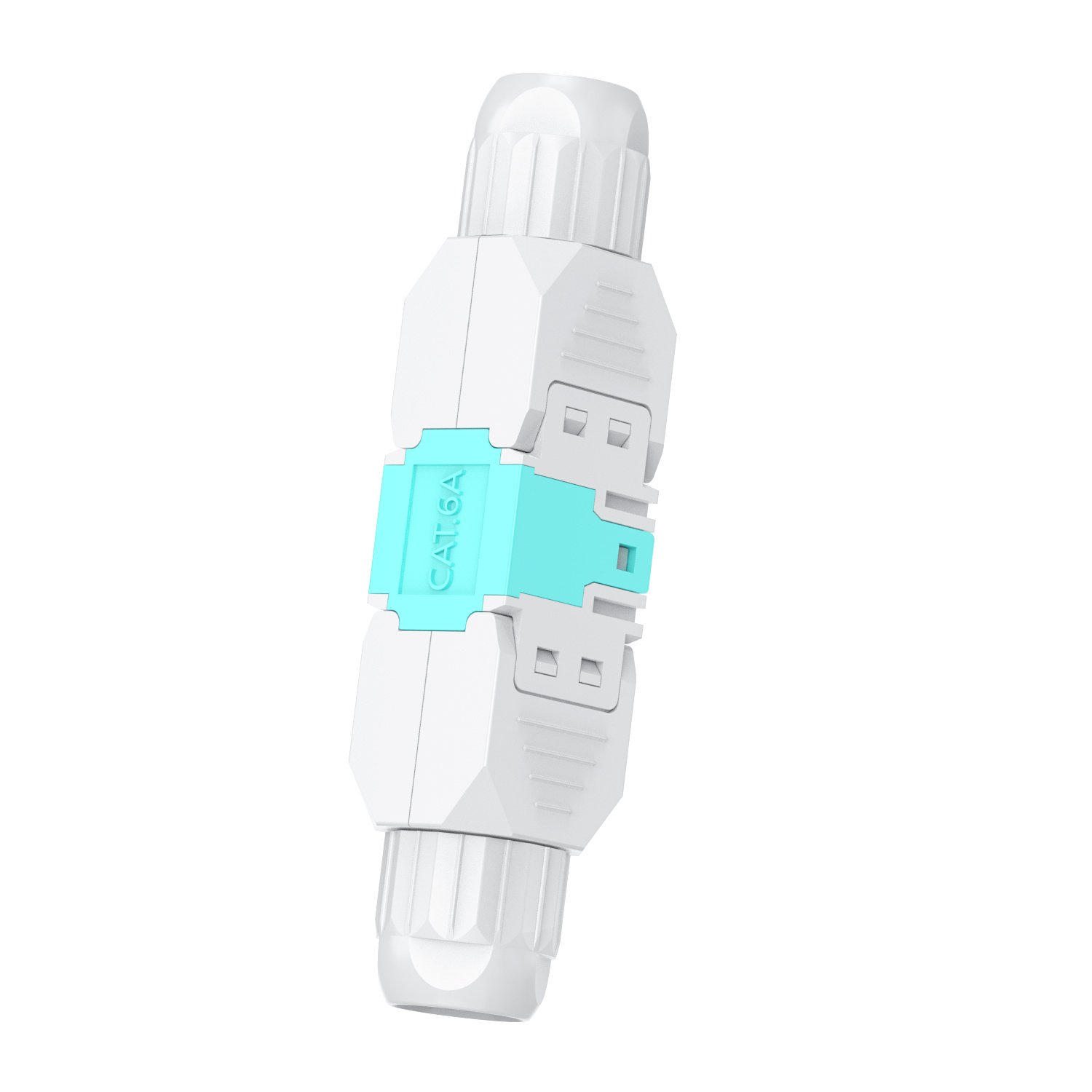

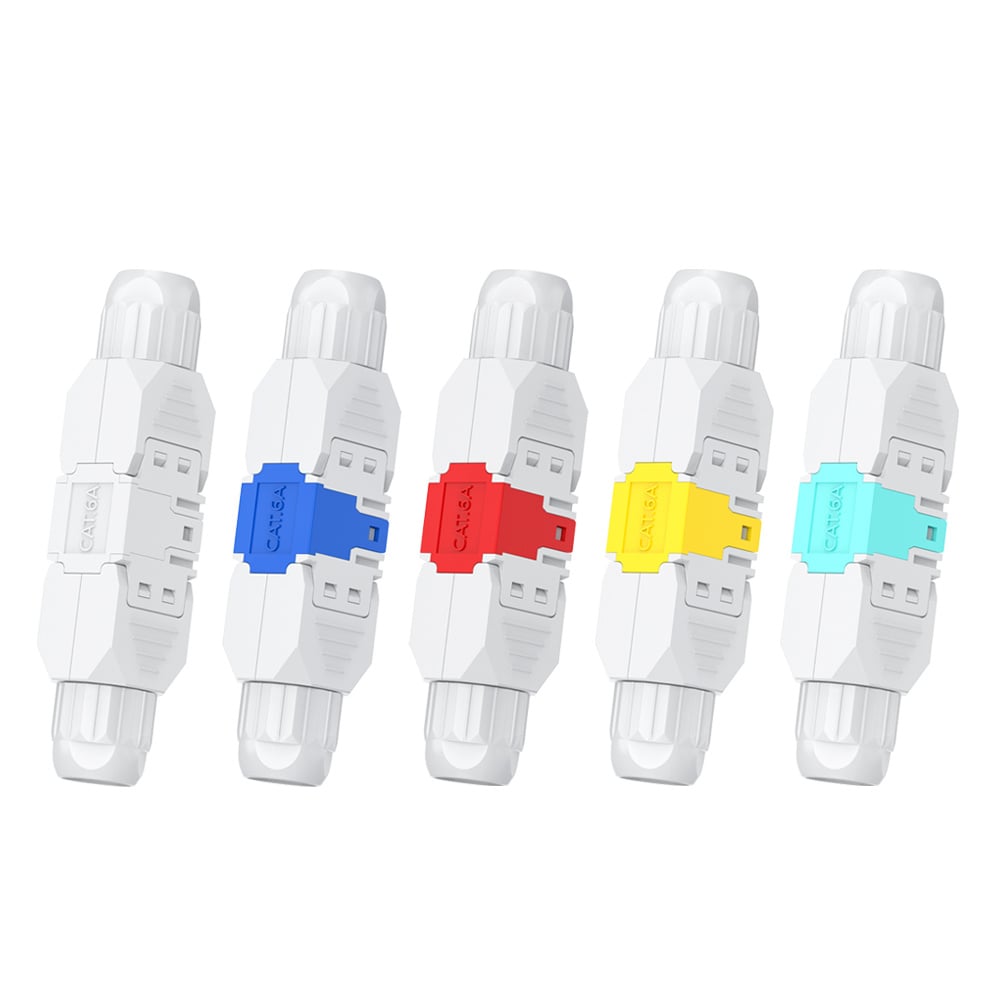

Color | White/Red/Yellow/Blue/Green |
Wiring | TIA 568A/TIA 568B |
Standard | ANSI/TIA568.2-D ISO/IEC 11801 |
Compatible with conductor gauge | 22 AWG~24 AWG |
Panel Material | PC UL94V-2 |
Pin Material | Phosphor bronze nickel plating gold plating 3u" |
IDC Material | Phosphor bronze nickel plating |
PCB Material | FR-4 UL94V-0 |
Contact Resistance | ≤20 mΩ |
Current Rating | 1.5 Amps @20 °C |
DC Resistance | 0.1 Ω |
DC/AC Volt Endurance | 1000V/AC 750V 1Min |
Insulation Resistance | 500 MΩ 100V/DC/1Min |
Plug Insertion Life | ≥750 cycles |
IDC Life | ≥200 termination cycles |
Punching | N/A |
Retentiveness of insertion structure | 50N 60±5s |
Flammability Rating | UL94V-HB |
Operating Temperature | –20 °C to +75 °C |
Operating Humidity | 10%~90% (RH) |
Storage Temperature | –40 °C to +75 °C |
Storage Humidity | 10%~90% (RH) |
Product Dimensions | 71.8mm×14.5mm×15.7mm |
